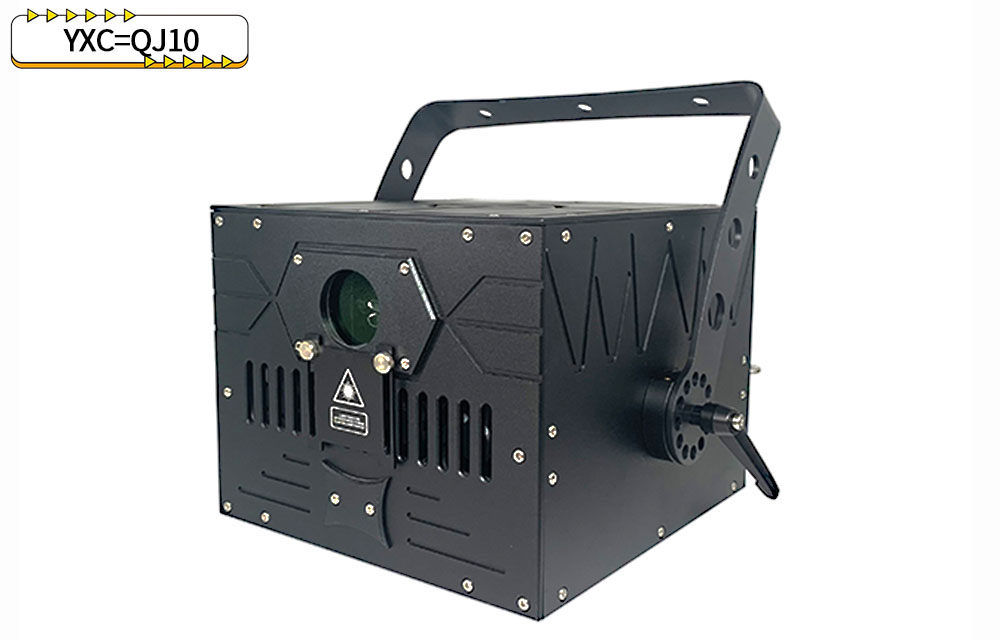

YXC-QJ10
Home>>Stage lighting
Scanner AT30/40kpps galvanometer High-quality dielectric film reflectivity>99%@45°incidence (coverage wavelength: 400nm-680mm)
10W full color animation laser light, aluminum alloy shell, durable, imported motherboard, stable imaging, imported beam, long life
| Name | 10w RGB Laser Light Specifications |
| Laser power | 10W (G: 520 3w/R: 638-3w B: 450 4W) |
| Cooling method | laser air cooling |
| Scanning angle | + - 30° (60 degrees) |
| Modulation method | TTL/analog automatic switching Modulation voltage: ≦100K |
| Laser divergence angle | <1.2mard (full angle) |
| Laser spot size | the size of the light outlet is less than or equal to 3mm |
| Waterproof grade | IP44 |
| Life | >10000 hours |
| Outdoor temperature use | -40-50° (built-in constant temperature system) |
| Base adjustment angle | + - 30° |
| Effects | 100-250V |
| Power | automatic, sound, DMX, ILDA software (FB4 built-in optional) |
| Product size | 21*28*18.5cm/8.5kgs |

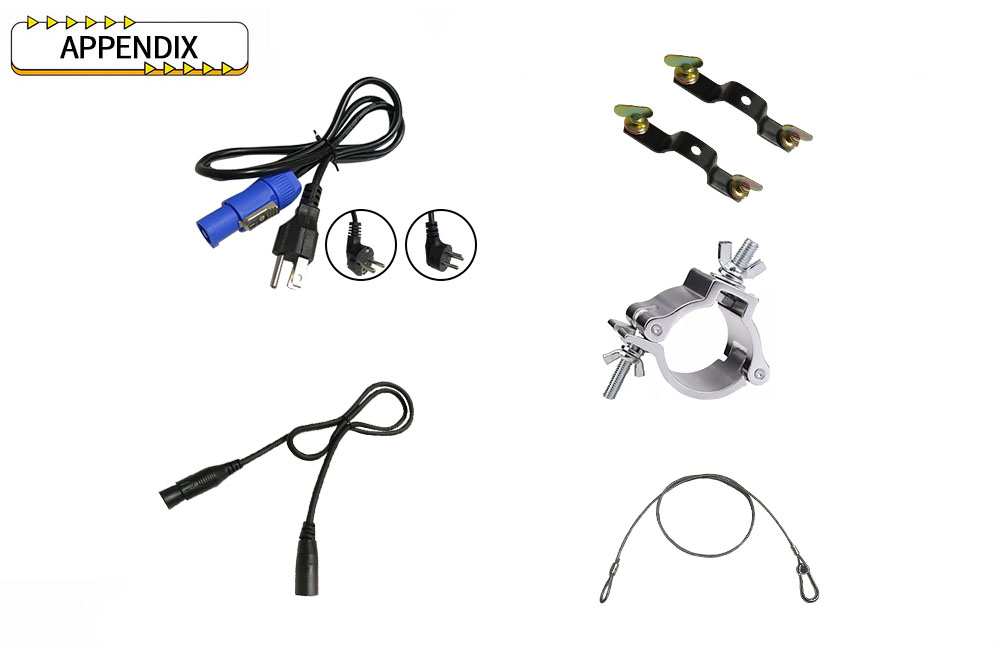

Power cable europcan/american/british oprional DMX signal line 3pin optional OMEGA standard for clamps
Clampsoptional 48-51mm max 300kgho-ok for truss Safety cable optional 4MM,length 680MM safety cable

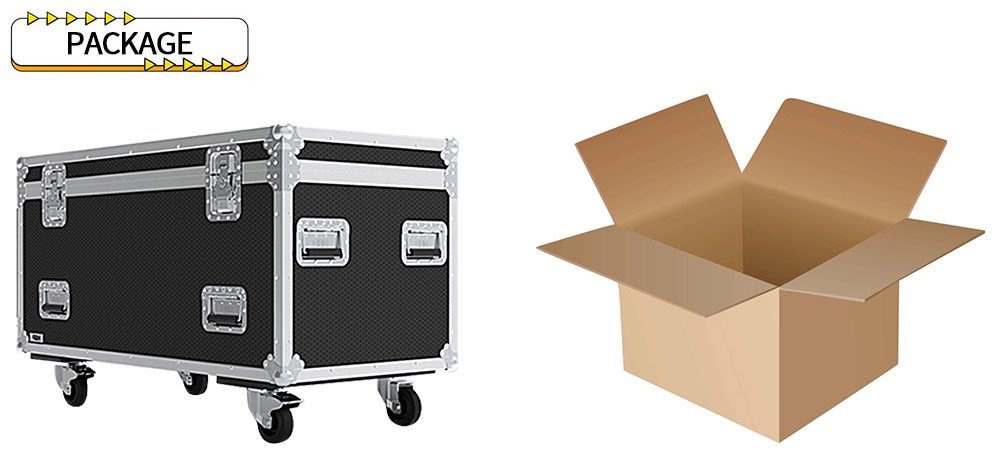

ROXTER case optional Flight case 1IN1/2 IN 1 foam shell optional
