LED curved display
Home>>LED screen

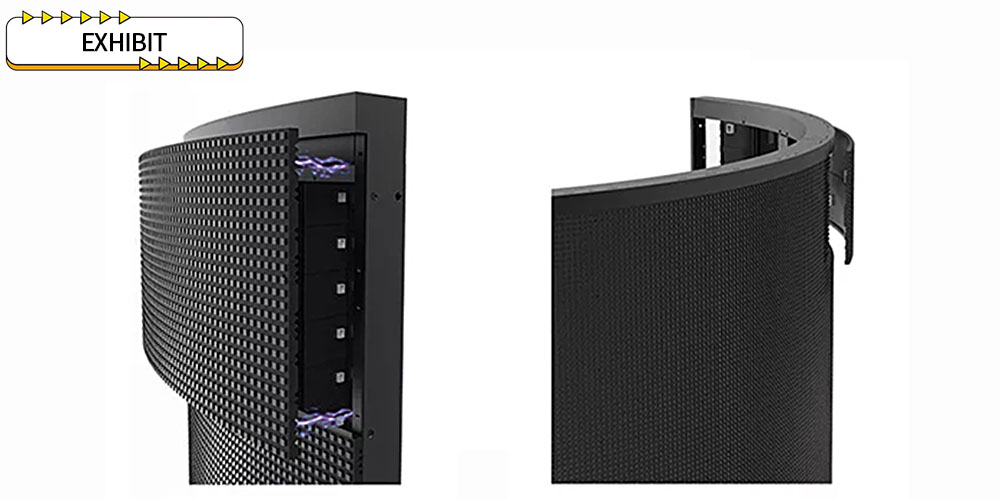

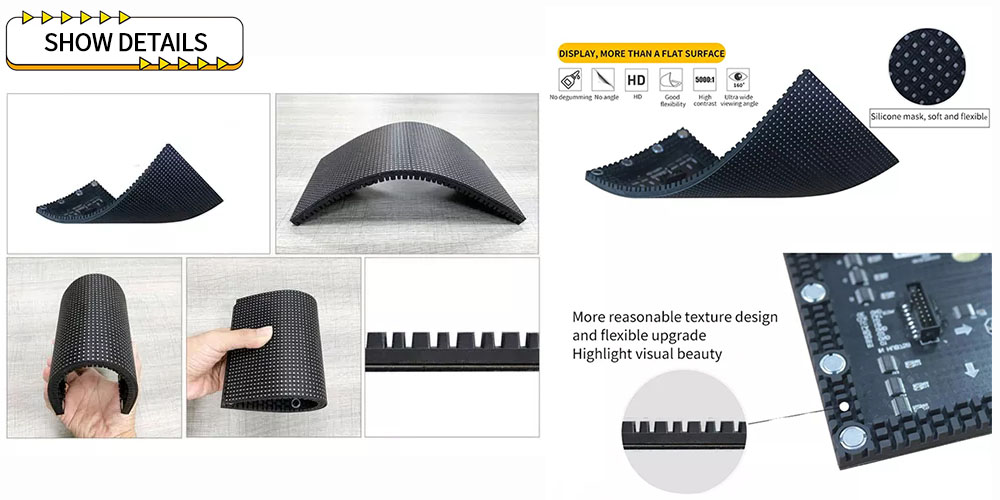

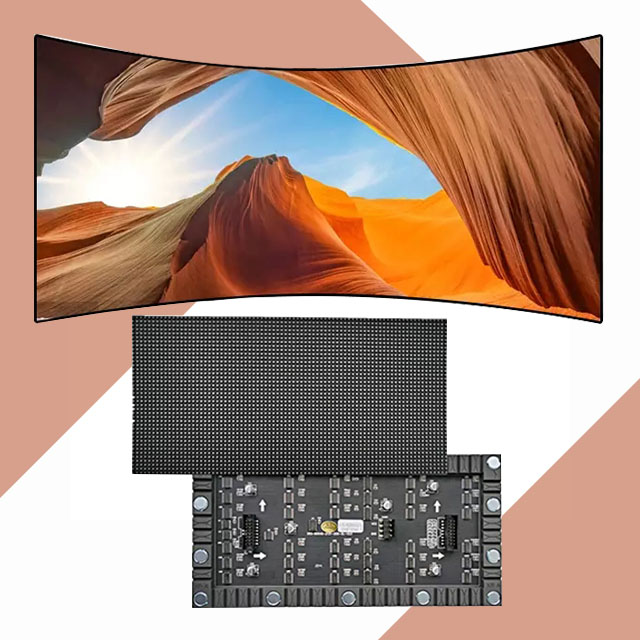

LED flexible curved display
Indoor available: P1.8 P2.5 P3 P4 P5

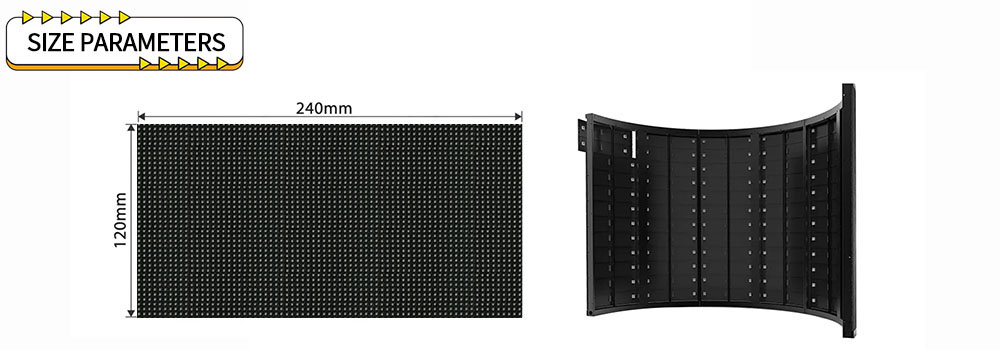

Size: 240*120MM
HD display
seamless stitching
energy saving
Quick installation and maintenance,Strong magnetic adsorption process, fast installation and easy maintenance
| LED curved screen specifications | |||||
| Item | P1.8 | P2.5 | P2.5 | P3 | P5 |
| Pixel pitch | 1.8mm | 2.5mm | 3mm | 5mm | 5mm |
| Module size | 360*160mm | 240*120mm | 256x128mm | 320x160mm | |
| Pixel density | 288907 points/square meter | 160000 points/square meter | 111111 points/square meter | 62500 points/square meter | 40000 points/square meter |
| Best viewing distance | 2-10m | 3-10m | 4-10m | 5-10m | 6-10m |
| Best viewing angle | Horizontal: 120° Vertical: 120° | ||||
| Average power consumption | 300W/sqm | ||||
| Operating temperature | 0°C~+50°C | ||||
| Refresh rate | 3840Hz | 1920Hz | |||
| Control system | Synchronous control system | ||||
| Service life | Service life 100.000 hours | ||||
