Light, thin, fast
HD enjoyment
high pixel density point
Low power consumption
Easy to maintain and install

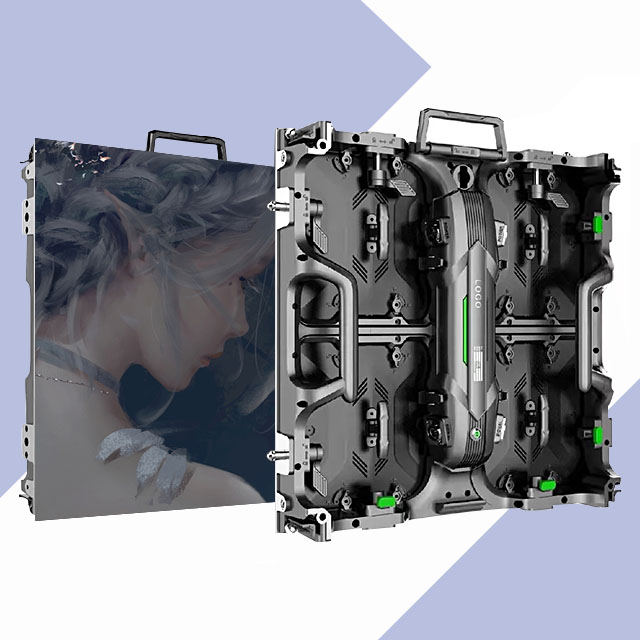

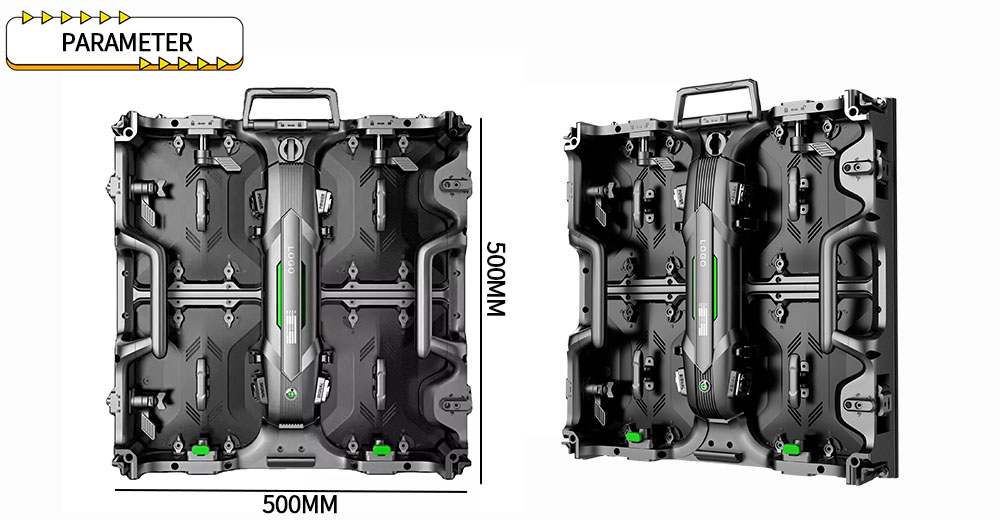

500*500mm LED display
p2.6mm p2.9 p3.9mm p4.8mm
Available indoor or outdoor

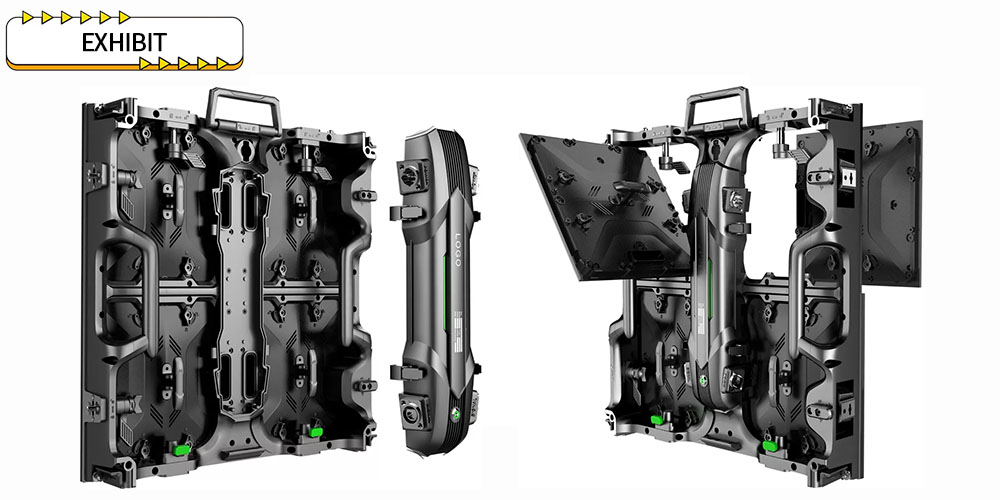

Front and rear double maintenance,1 year warranty and 5% spare parts
| Indoor Screen Specifications | |||||
| Model | P1.9 | P2.6 | P2.9 | P3.9 | P4.8 |
| Pixel pitch | 1.953mm | 2.604mm | 2.976mm | 3.906mm | 4.807mm |
| Pixel structure | 1R1G1B | ||||
| Resolution | 128x128 | 96x96 | 84x84 | 64x64 | 52x52 |
| Pixel density | 262144/m2 | 147456/m2 | 112896/m2 | 65536/m2 | 43264/m2 |
| LED chip | SMD1515 | SMD2121 | |||
| IC chip | ICN2037/FM6124 | ICN2153/FM9930 | |||
| Refresh rate | ≥1920Hz | ≥3840Hz | |||
| Scanning method | 1/32S | 1/28S | 1/16S | 1/13S | |
| Grayscale | 14Bit-18Bit | ||||
| Brightness | 600-1200nits/m2 | ||||
| Maximum power | 600W/m2 | ||||
| Average power | 150-300W/m2 | ||||
| Protection class | IP30 | ||||
| Outdoor Screen Specifications | ||||
| Model | P2.6 | P2.9 | P3.9 | P4.8 |
| Pixel pitch | 2.604mm | 2.976mm | 3.906mm | 4.807mm |
| Pixel structure | 1R1G1B | |||
| Resolution | 96x96 | 84x84 | 64x64 | |
| Pixel density | 147456/m2 | 112896/m2 | 65536/m2 | 43264/m2 |
| LED chip | SMD1415 | SMD1921 | ||
| IC chip | ICN2037/FM6124 | ICN2153/FM9930 | ||
| Refresh rate | ≥1920Hz | ≥3840Hz | ||
| Scanning method | 1/24S | 1/28S | 1/16S | 1/13S |
| Grayscale | 14Bit-18Bit | |||
| Brightness | 4000-5000cd/m2 | |||
| Maximum power | 900W/m2 | |||
| Average power | 150-300W/m2 | |||
| Protection class | IP65 | |||
