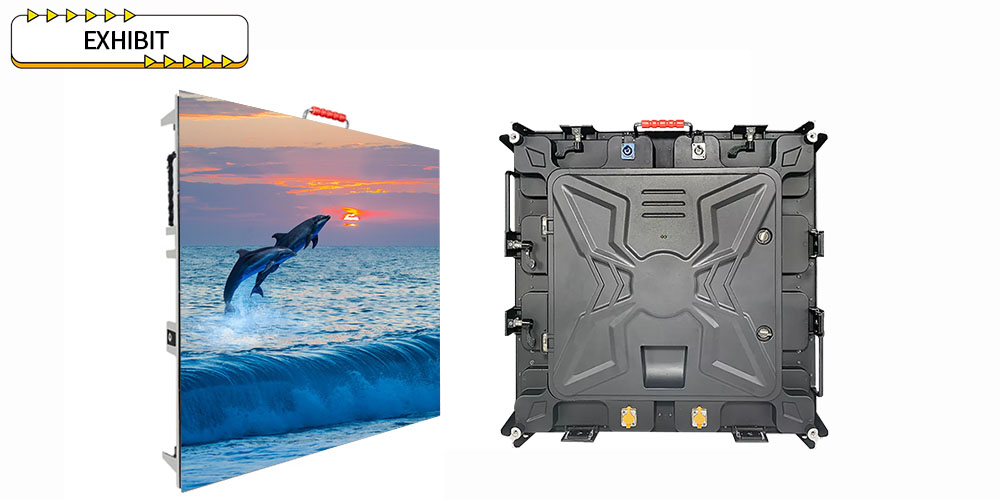

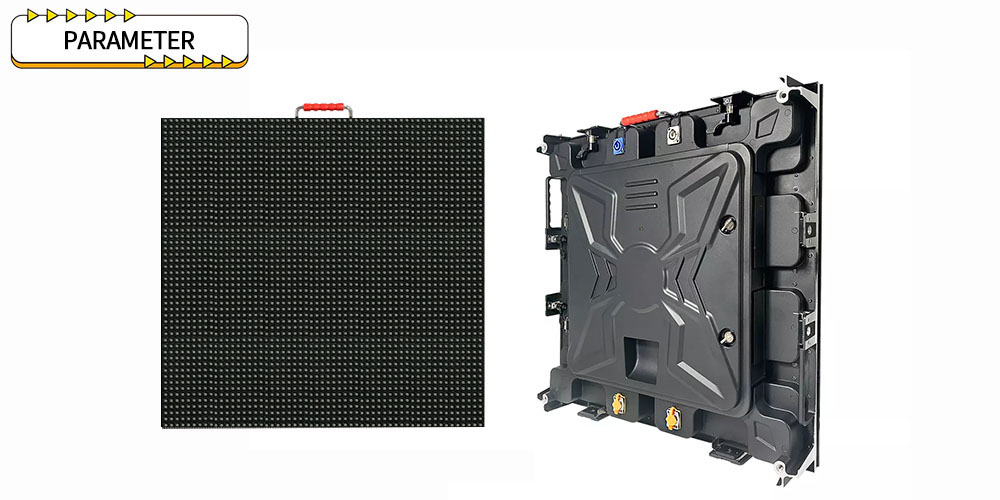

640*640mm LED display
p2.5mm p3 p3.5mm p4mm p5mm
both indoor and outdoor
Easy to maintain and install
shape, curve
90° angle
front and rear dual maintenance
1 year warranty and 5% spare parts
LED full color display，light, thin, fast，HD enjoyment,High pixel density dots，low power consumption，Active maintenance
| Display Specification Information | |||||
| pixel pitch | P2.5 | P3 | P3.5 | P4 | P5 |
| Module size | 320*160mm | ||||
| Cabinet size | 640mm*640mm*61.5mm | ||||
| Pixel density | 65536 pixels/m2 | 43264 pixels/m2 | 36864 pixels/m2 | 16384 pixels/m2 | |
| Refresh rate | 3840Hz | 1920Hz | |||
| Power Specifications | 5V-60A*1 | 5V-40A*1 | 5V-60A*2 | ||
| Voltage | 220V | ||||
| number of installations | 8 modules | ||||
| Cabinet weight | 6.2kg (excluding aluminum door/kit and power supply) | ||||
| Cabinet Material | Aluminum | ||||
| Installation | Beam hoisting and fixed installation | ||||
| Color Body | Black Door: Black/Blue/Orange | ||||
| Working environment | indoor and outdoor | ||||
| LED type | SMD 2121 | ||||
| Brightness | ≥800cd/m² | ||||
| Life | 100000 hours | ||||
