960*960C
Home>>LED screen
Light, thin, fast
HD enjoyment
high pixel density point
Low power consumption
Easy to maintain and install

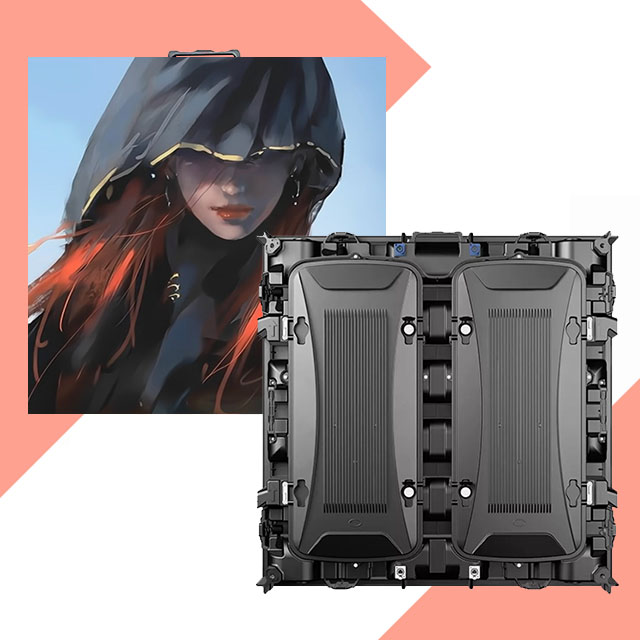

960*960mm LED display,
p2.5mm p3.07 p4mm p5mm p10mm
Available indoor or outdoor,Front and rear double maintenance 2-3 year warranty and 5% spare parts
| indoor LED screen specifications | |||||
| pixel pitch | 2.5mm | 3.07mm | 4mm | 5mm | 10mm |
| led | SMD 3 in 1 | ||||
| Module size | 320*160mm | ||||
| Module resolution | 128*64 points | 104*52 points | 80*40 points | 64*32 points | 32*16 points |
| density | 160000 pixels/square meter | 105688 pixels/square meter | 62500 pixels/square meter | 40000 pixels/square meter | 10000 pixels/square meter |
| LED cabinet size | 960*960*87(mm) | ||||
| Cabinet weight | 24kg/pc | ||||
| Material | Die-cast magnesium alloy | ||||
| brightness | 800-1000cd/m2(nits) | ||||
| Average power consumption | 450w | 380w | 350w | 320w | 280w |
| Maximum power consumption | 980w | 900w | 880w | 850w | 750w |
| best viewing distance | 2.5m to 25m | 3m to 30m | 4m to 40m | 5m to 50m | 10m to 100m |
| grayscale | 14 bits | ||||
| fresh frequency | ≥60HZ | ≥960HZ | |||
| Humidity Operation | 10%~95% | ||||
| screen life | ≥100000 hours | ||||
| Certificate | CEROHs.FCCUL | ||||
| Warranty | 3 years | ||||
| Protection class | IP43 dustproof | ||||
| Outdoor LED screen specifications | |||||
| pixel pitch | 4mm | 5mm | 6.67mm | 8mm | 10mm |
| led | SMD 3 in 1 | ||||
| module size | 320*160mm | ||||
| Module resolution | 80*40 points | 64*32 points | 48*24 points | 40*20 points | 32*16 points |
| density | 62500 pixels/sqm | 40000 pixels/sqm | 22478 pixels/sqm | 15625 pixels/sqm | 10000 pixels/sqm |
| LED cabinet size | 960*960*87(mm) | ||||
| Cabinet weight | 26kg/pc | ||||
| Material | Die-cast magnesium alloy | ||||
| brightness | 5500-6500cd/m2(nits) | ||||
| Average power consumption | 480w | 450w | 350w | 320w | 280w |
| Maximum power consumption | 980w | 880w | 950w | 850w | 750w |
| best viewing distance | 4m to 40m | 5m to 50m | 6m to 60m | 8m to 80m | 10m to 100m |
| grayscale | 14 bits | ||||
| fresh frequency | ≥960HZ | ||||
| Working humidity | 10%~95% | ||||
| screen life | ≥100000 hours | ||||
| Certificate | CERoHs.FCC.U | ||||
| Warranty | 3 years | ||||
| Protection class | IP65 waterproof | ||||
